Purpose
The purpose of this document is to present an POE Switch for Casino.
POE Switch
The POE (Power over Ethernet) switch is responsible to connect the Access Point (wifi device) to Server.

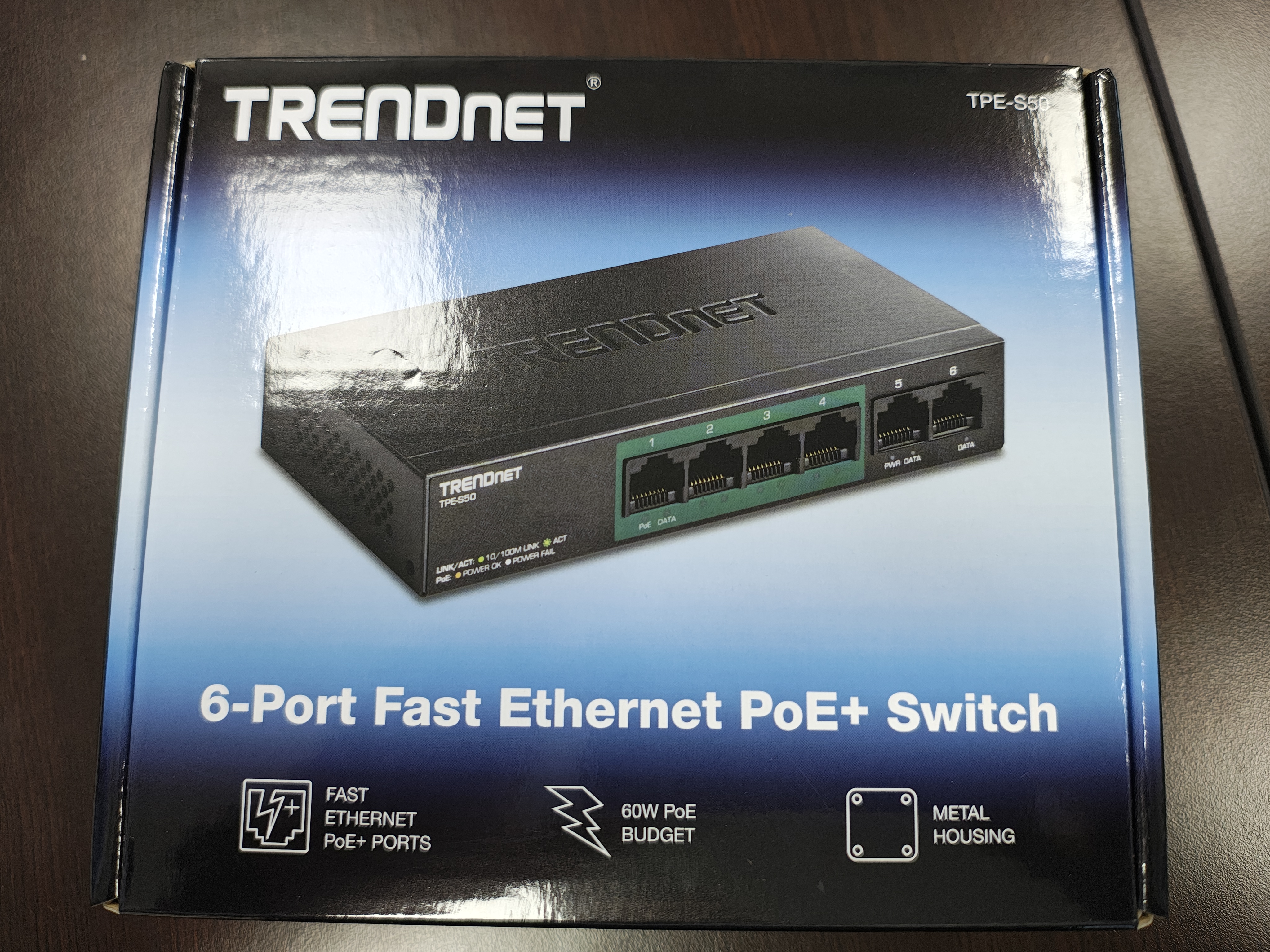

The switch is a little box with the word TRENDNET in the top as in the pictures.
The switch has 2 sides, the front is where the Power Cable is located to connect the power source and turn it on.
The other side is where the Data connections are, in the green section, is where the POE connections are, is used to connect with Access Points providing Power and Data in same cable.
This is how is installed.
