Kiosk Setup (CountR)

Objective:

This document will guide you through the steps to set up a CountR kiosk. The procedure will work work after this steps:

In API:

1. Update the CountR software to be API compatible
2. Connect a network cable from the CountR PC to our internal switch.

Procedure:

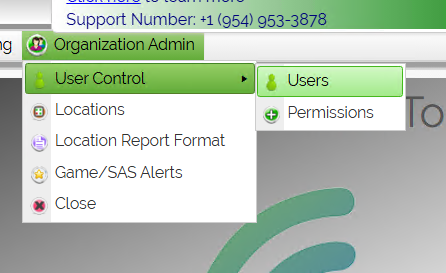

1. Create a new portal user for kiosk purposes going to Organization Admin -> User Control -> Users:

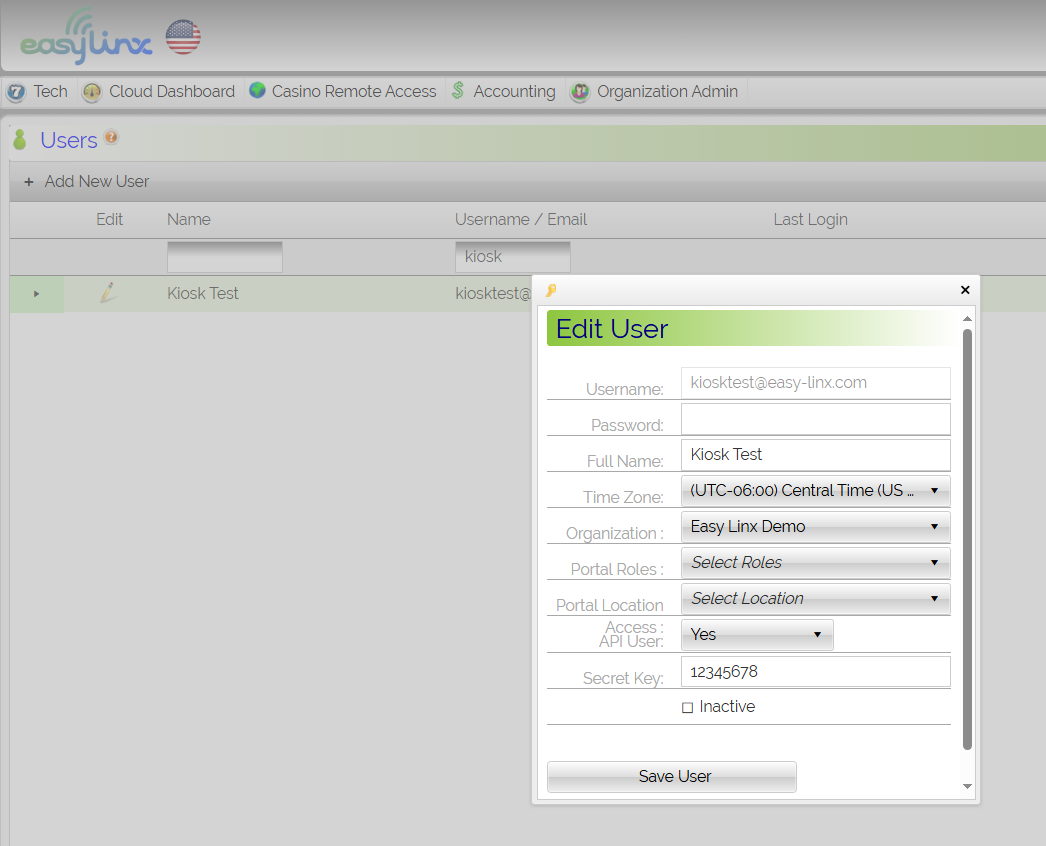

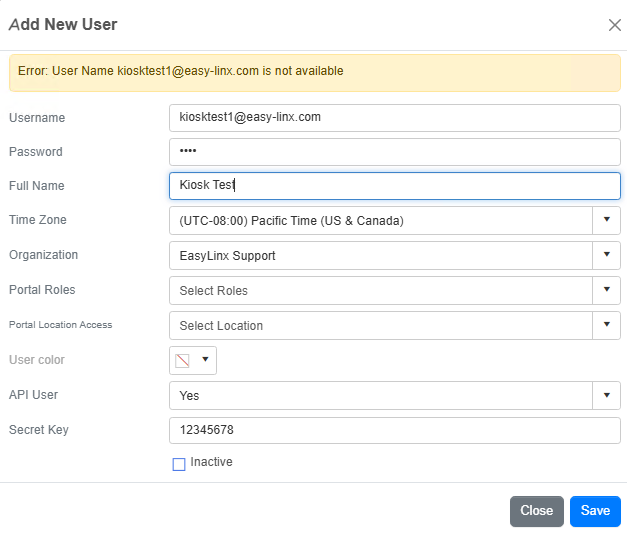

2. Do not assign any roles and any Locations. API User set to "yes". Type the Secret Key and click on "Save User":

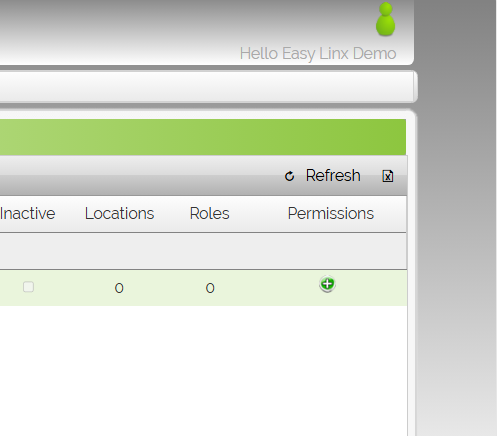

3. Now, it is necessary to set permission for each location that have kiosk. From the users list, click the Permissions "+" sign:

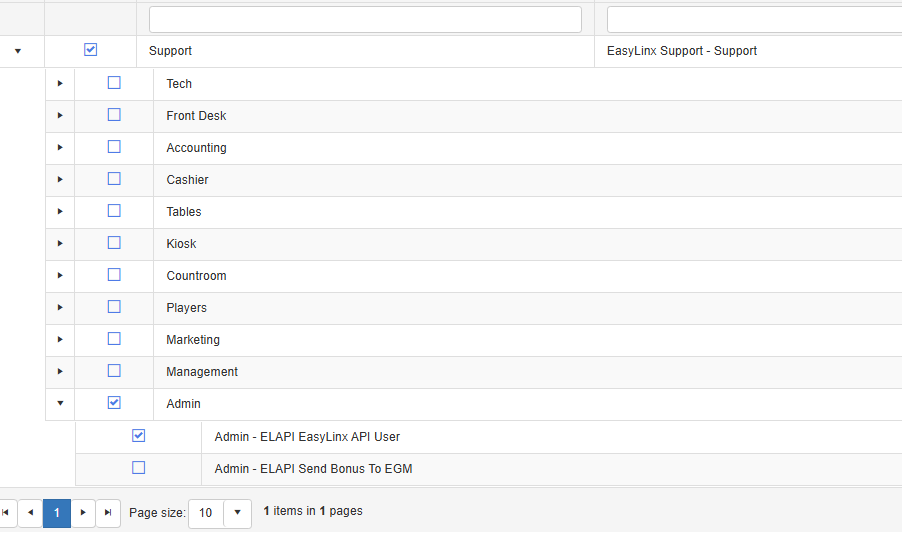

4. Expand the desired location tree and the Admin branch. Check option "Admin - ELAPI EasyLinx API User" for each location:

5. Open top door or use tech card to login with a master account:

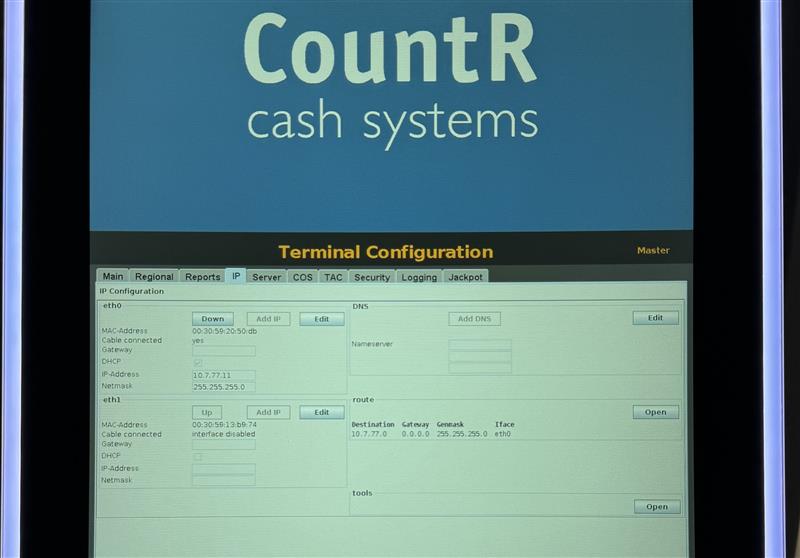

6. Tap on Continue, Configuration, Terminal.

7. Verify the IP "10.7.77.x" received.

8. Select the Main tab (may require a service account):

9. Set Terminal Mode to "Combined Terminal":

10. Select COS tab

Server URL: http://10.7.77.253/api/portal

Fill out username, password, machine ID, and shared secret to match EasyLinx kiosk setup.

Redeem Tickets: Enable

Enable Ticket Creation: Enable

Create Tickets as Change: Enable

11. Select Jackpot tab (may require a service account):

Jackpot System Type: EasyLinx

Host URL: http://10.7.77.253/api/portal

Fill out username, password, machine ID, and shared secret to match EasyLinx kiosk setup.

12. Click on the red “X” at the bottom left to return to the main menu.

13. Navigate to “Administration" and "Payout Rules”:

Set up a new payout rule using the “New” button. This is important for jackpots and further defines which operators may pay out which jackpots, and amounts. In this example, no limits are set (99,999,999).

14. To save the changes Restart the kiosk.

Location Side:

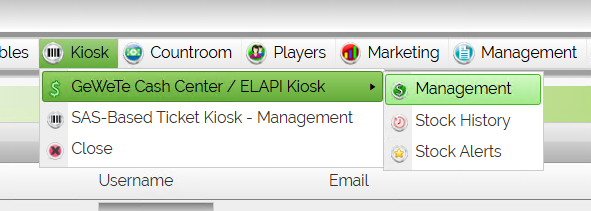

1. Create the kiosk record going to Kiosk -> GeWeTe Cash Center / ELA EPI Kiosk -> Management:

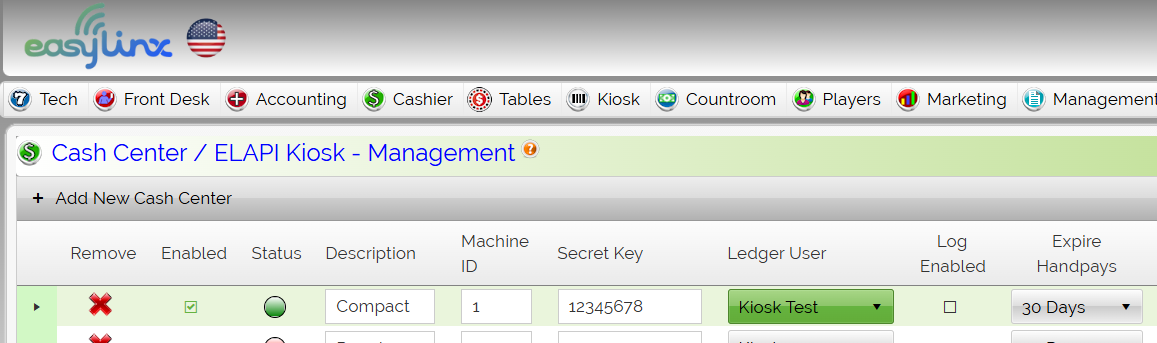

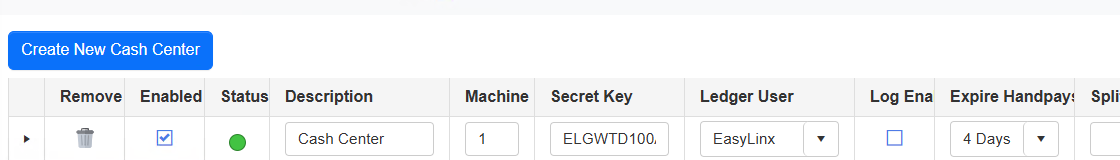

2. Create a new kiosk, set the machine ID, secret key and ledger to be used:

It takes less than 5 minutes for the location (site controller) to receive the user from the portal (propagation) after you check the permission box.
The only additional task you will have in each location (site controller), is to create the Kiosk entry, specifying the same secret key and ledger for the same user.
