IFS Kiosk Setup

Objective:

This document will guide you through the steps to configure the IFS Kiosk Setup.

Procedure:

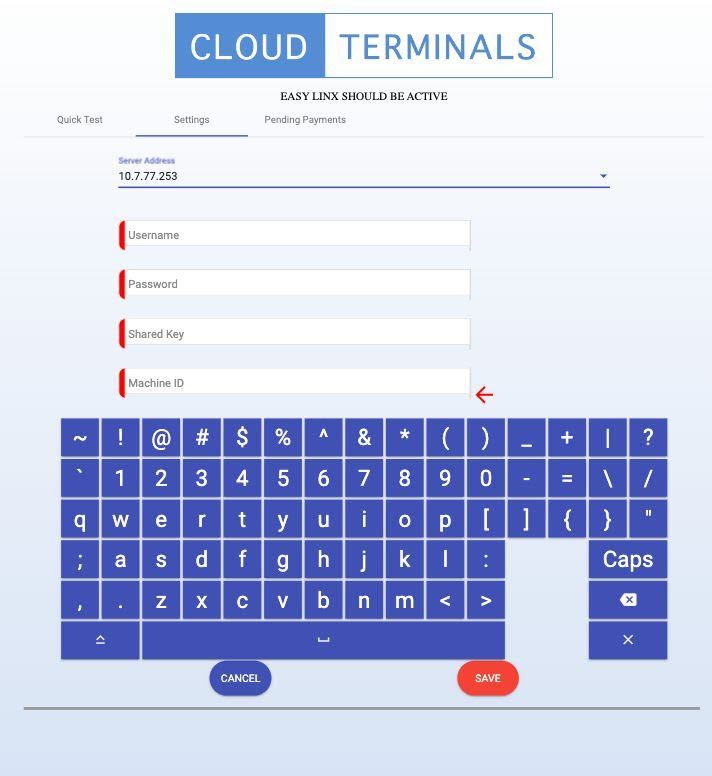

1. For now we will only have this screen informing the credentials, secret keys and this data must be set according to the data provided by EasyLinx.

System Side:

1. User Creation

To create a new user in the system for this Kiosk, you need to follow these steps:
Go the users page (Admin -> Users & Permissions -> Users)

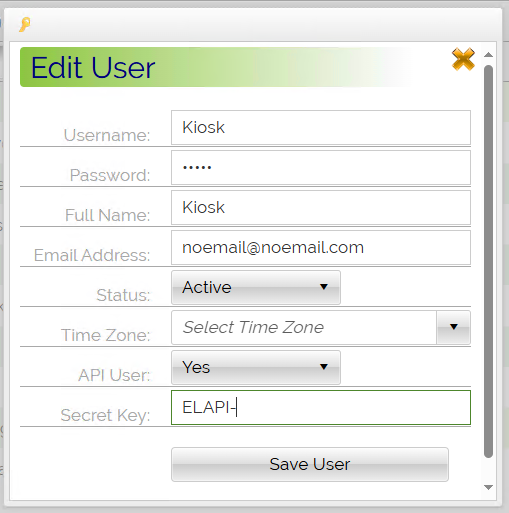

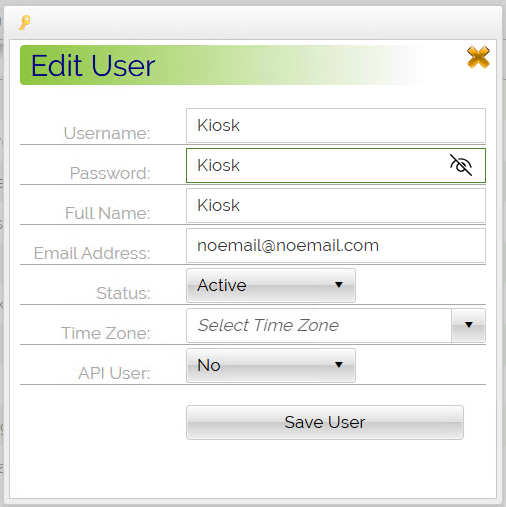

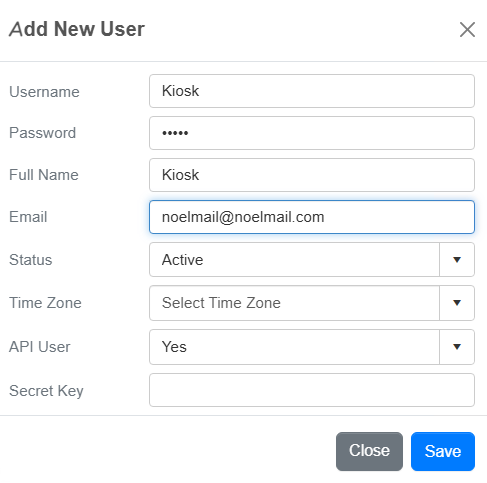

Once there, you need to click on the "+ Add New User" button and this modal will appear:

Insert the informations for this user in this format:

User: Kiosk

Password: Kiosk

Full Name: Kiosk

Then you will need to set "API User" as "Yes", and the option to insert a "Secret Key" will appear:

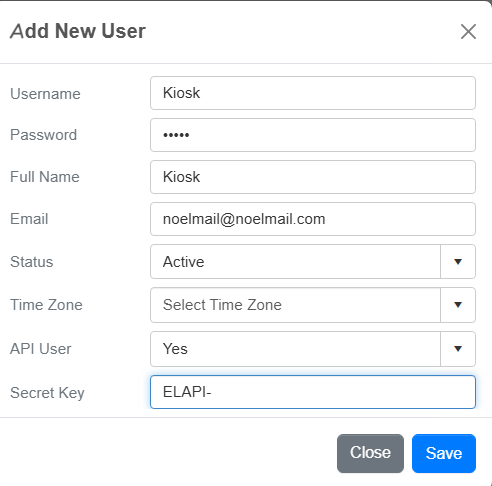

Insert the "Secret Key" just like in the screenshot:

Secret Key: ELAPI-(name indicating the location)

Then, click "Save User". The user is now created.

2. Kiosk Creation

Now that we have our Kiosk user created, we must create a Kiosk for this location, you can do this by following these steps:

First of all you need to go to the Kiosks page (Kiosk -> GeWeTe Cash Center / ELAPI Kiosk -> Management)

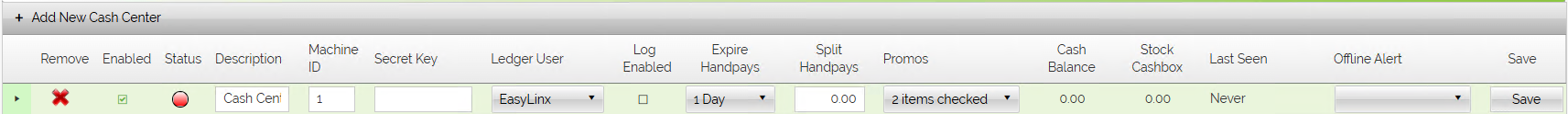

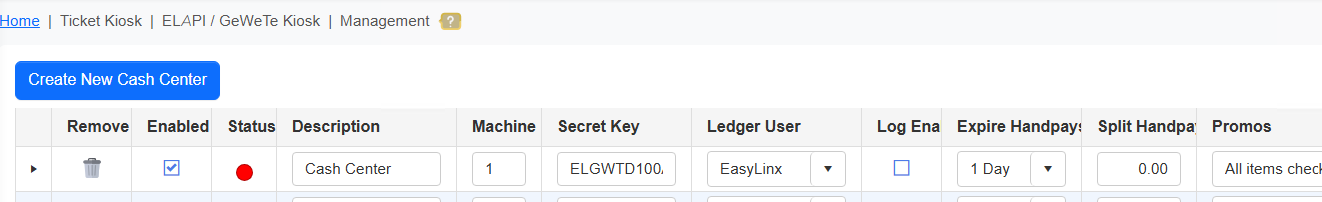

Once there, you need to click on the "Add New Cash Center" button, and then a new Kiosk will be created in the list:

After creating this Kiosk, you need to insert the right informations, as they are:

Machine ID: 1

Secret Key: ELAPI-(the same as the user)

Kiosk Description:  ISF Kiosk

Ledger User: Kiosk

After completing these steps, you can click "Save" at the end of the row, and now you have a new Kiosk created at this location.

Important notes:

Once you click "Save" at the Kiosk creation, a new ledger will be created for the user assigned to the Kiosk
