Understanding Hardware Connections of the Card Reader

Objective:

This document will show the hardware of the Card reader and its connections to the ELA (EasyLinx Adapter).

What is the Card Reader?

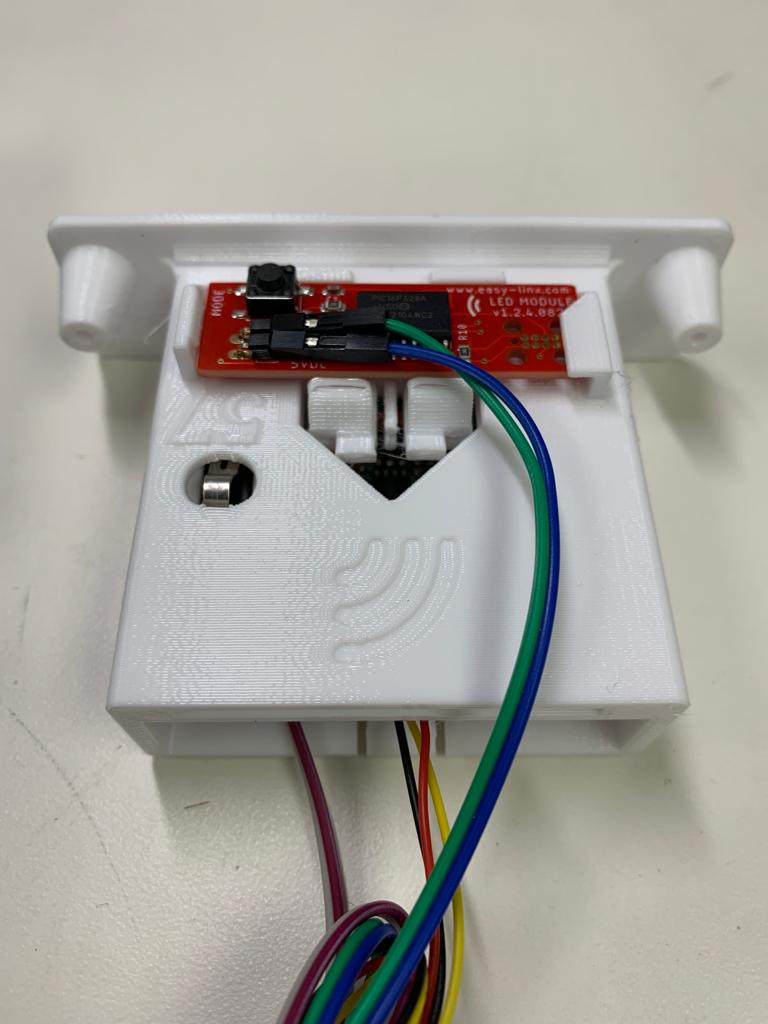

The card reader is composed of an RFID sensor (under de case), a switch (circle gap), and the LED module (above the case)

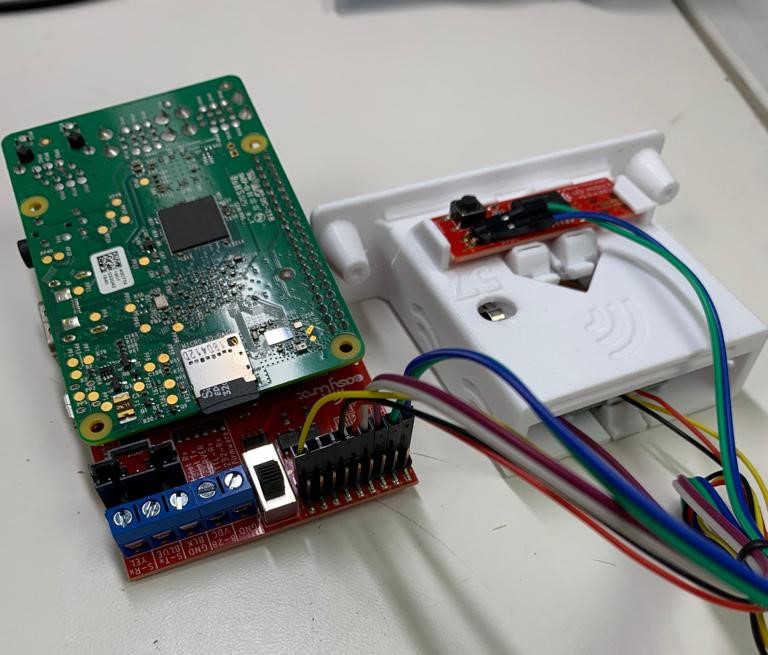

How is it connected to the ELA?

There is a pattern in the connection that must be respected in order to properly works the module with the ELA. The topology is shown below:

This pattern comes as default from the EasyLinx Office in the installation. In case of any maintenance in the slot from a local technician, this pattern should be followed.
