How to install the Access Point (AP)

Objective:

This document will show how the access point works and how to identify if it is working correctly.

How does the access point work?

An access point (AP) refers to a device or hardware component that allows wireless devices, such as laptops, smartphones, or tablets, to connect to a computer network. It acts as a bridge or intermediary between the wireless devices and the network infrastructure, enabling wireless communication and access to network resources.

Access points are commonly used in Wi-Fi networks to provide wireless connectivity in a specific area or location, such as homes, offices, airports, cafes, or public spaces. They transmit and receive wireless signals, facilitating the exchange of data between the connected devices and the network.

The access point is responsible for communicating between the system and the ELAs.

Our Access Point transmits a 360-degree signal. It is important that the Access Point must be installed in the middle of the location, always on top fixed in the ceiling. The Access Point can't be installed on the floor or behind the wall.

How to install the Access Point?

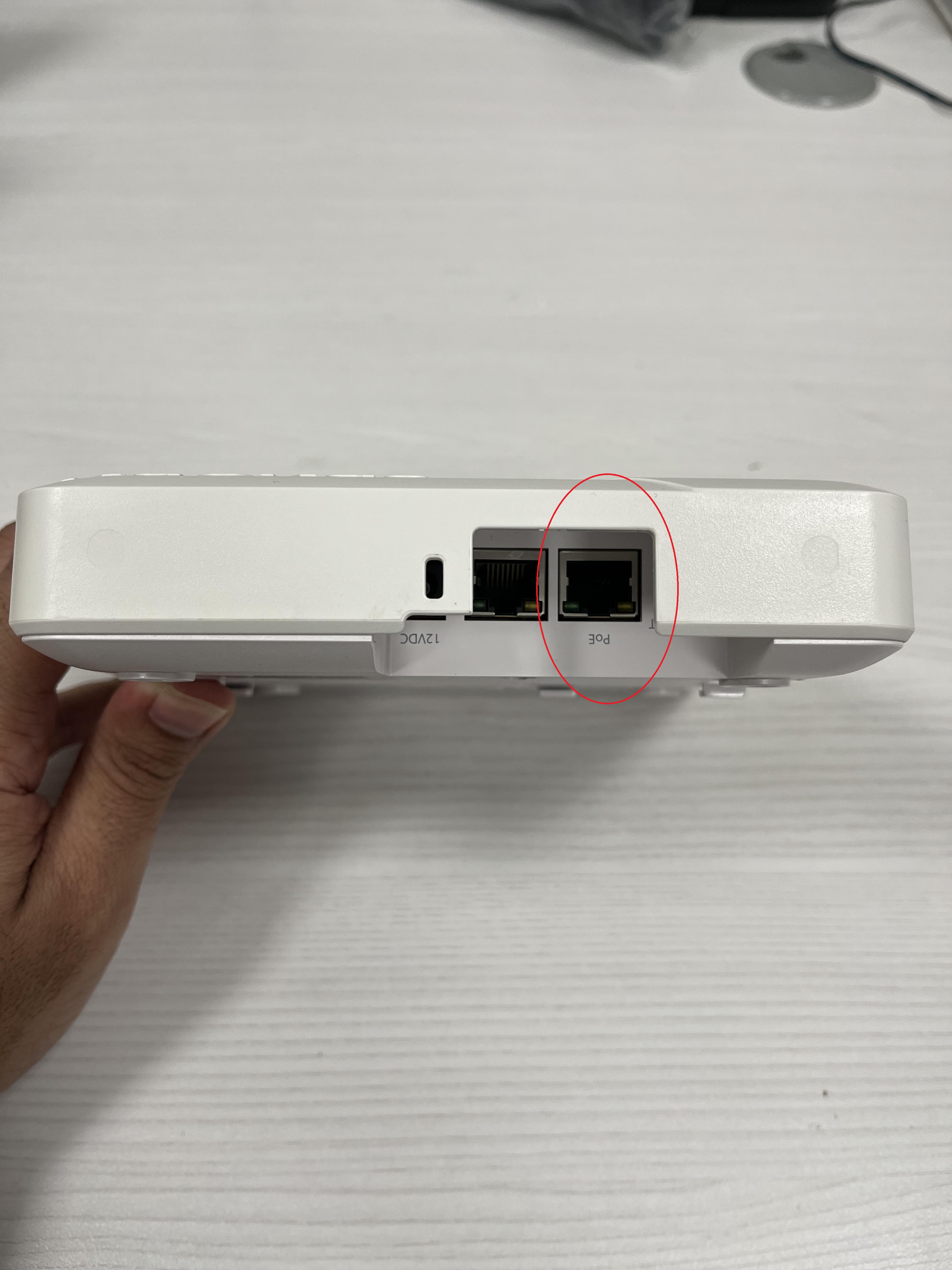

On the back of the Access Point, there is a connection called "PoE". One end of the ethernet cable (CAT5) must be connected there.

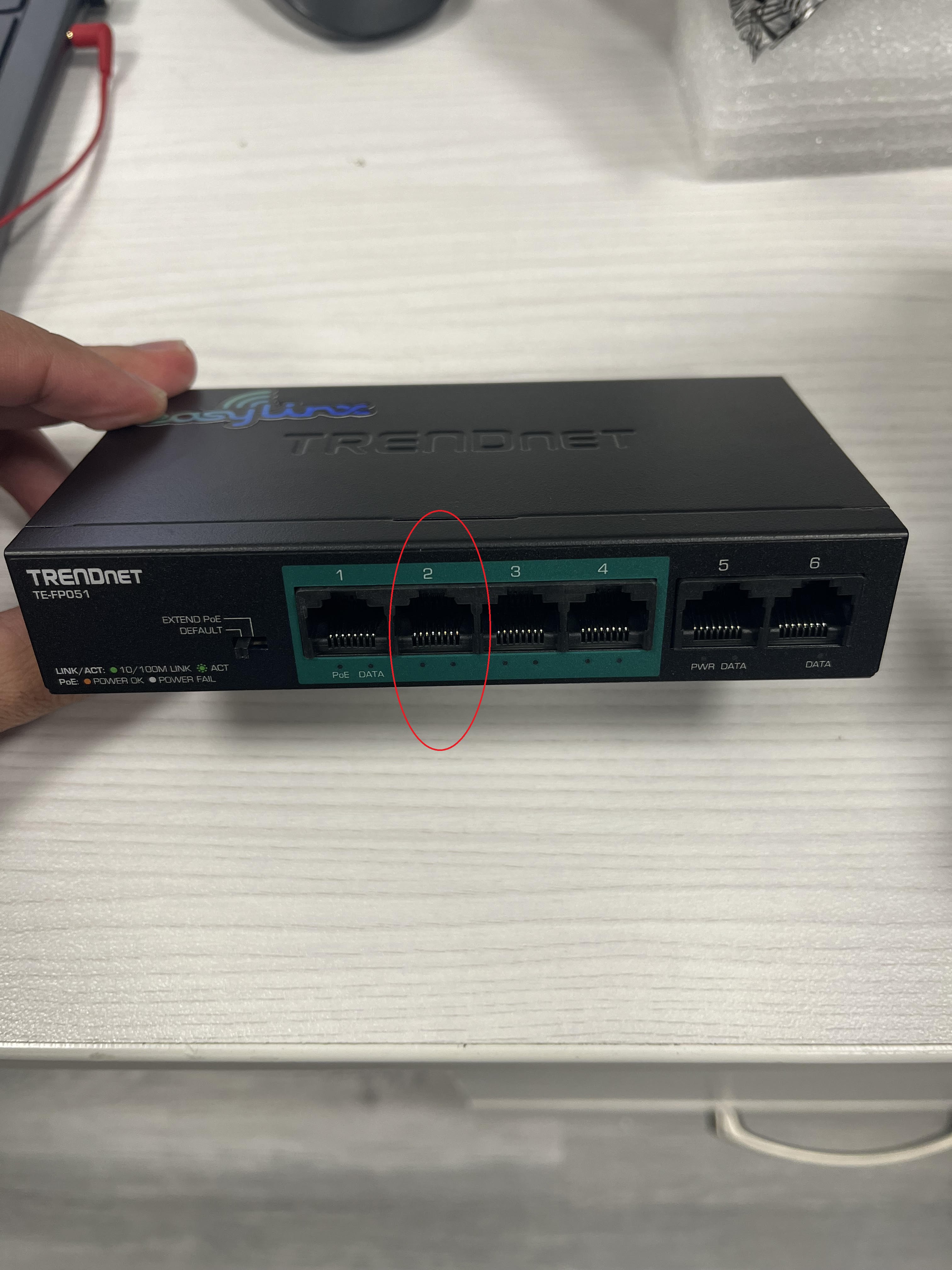

The other end of the ethernet cable (CAT5) must be connected to any port available in the switch:

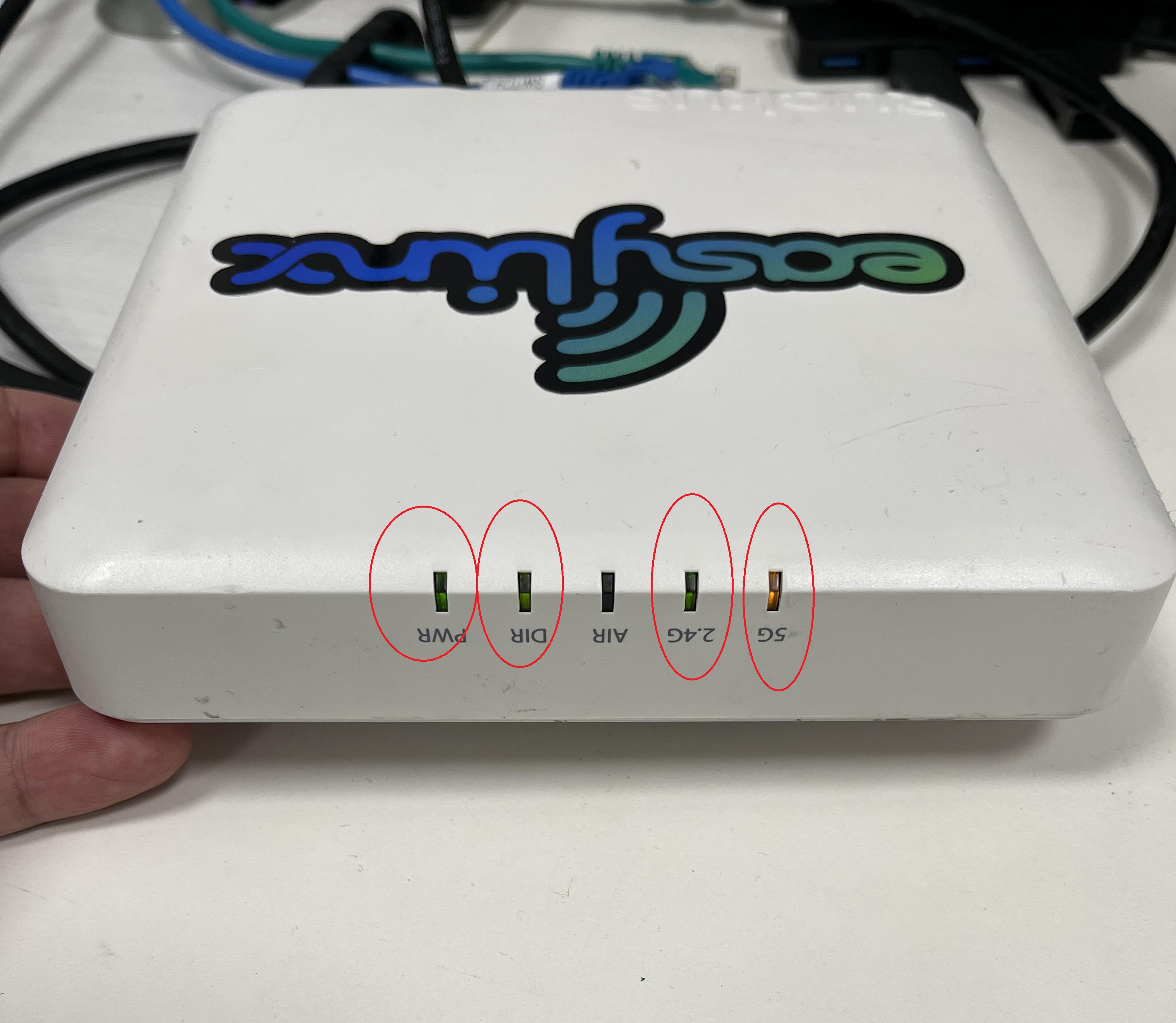

After connecting, 4 lights must be on, in the Access Point (PWR, DIR, 2.4G and 5G). If these lights are not on, it means the AP is not correctly installed or the same is damaged.

If the 2.4GHz or 5GHz lights are green, it means that devices are connected to the network (ELA's, POS, tablet). If the light is orange, it means there is no device connected yet.

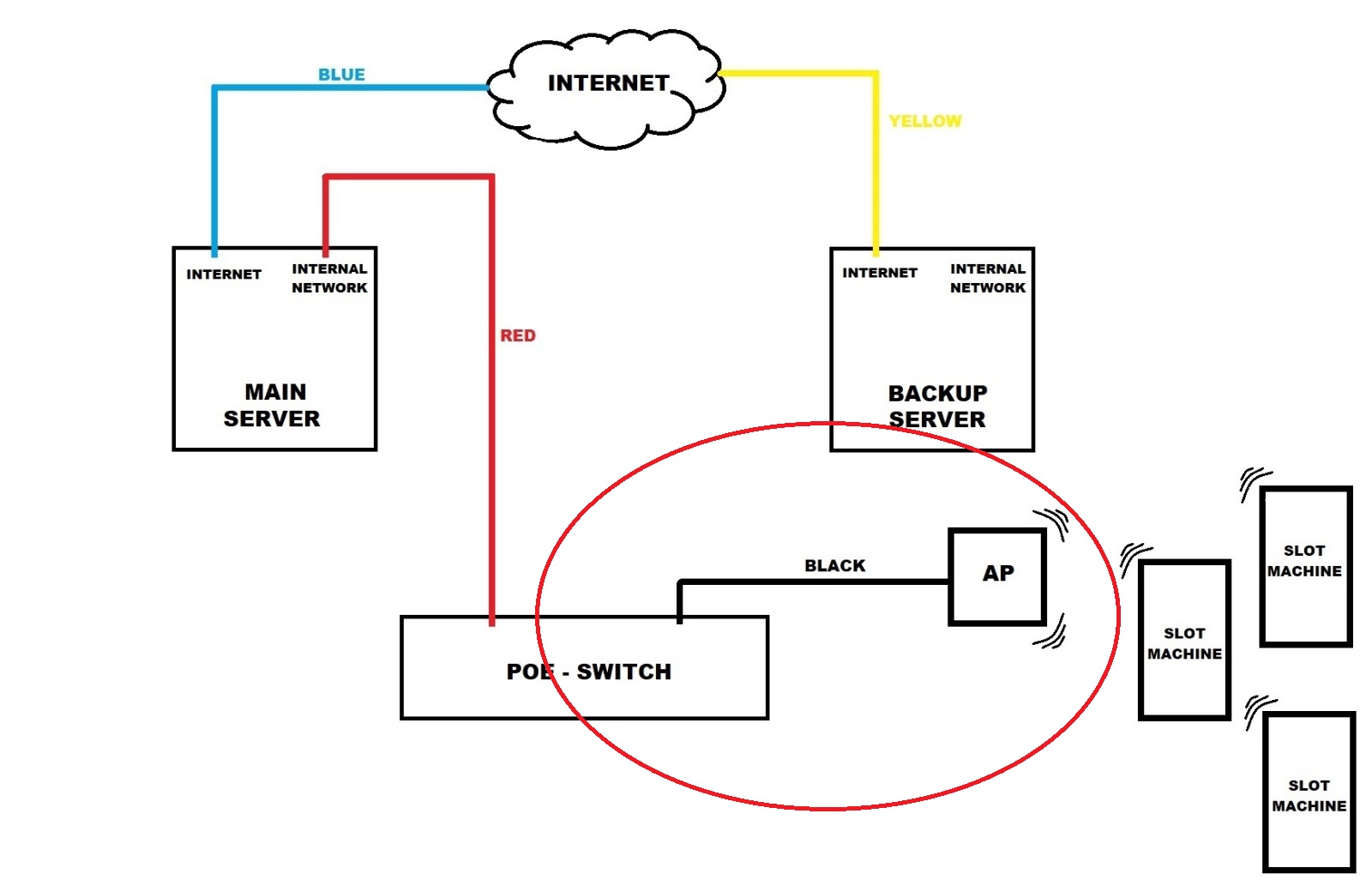

In the diagram below you can see how all hardware must be connected in the location:
