Purpose
The purpose of this document is to present the device Access Point and how is used.
Access Point
The Access Point or AP it is a device responsible to create the wireless network easylinx51 and easylinx241 for ELA on Game machines, POS computers, JackPot controllers and all Easylinx Network.

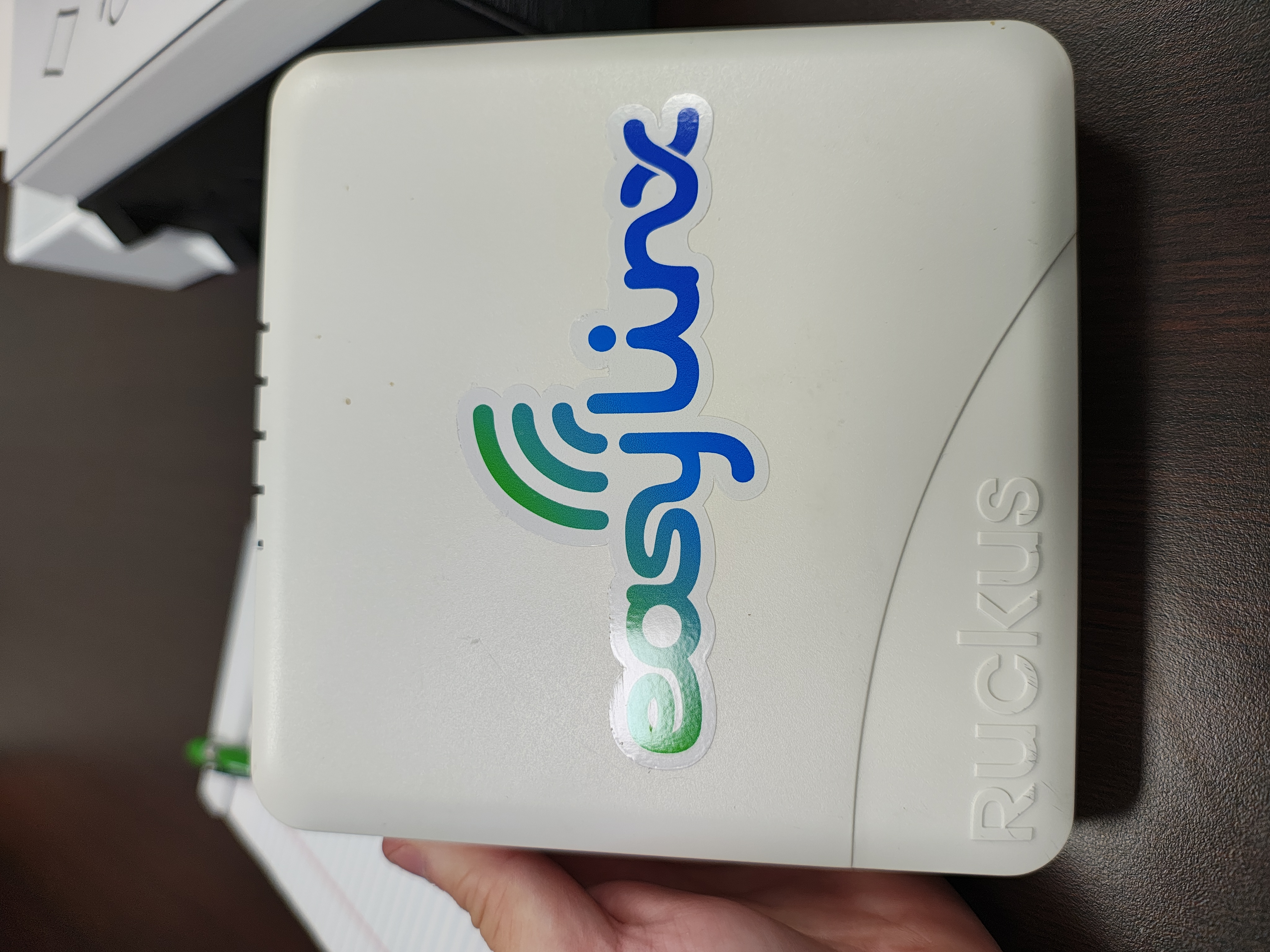

The AP (Access Point) is white, usually in model R600 like the one from the picture bellow.

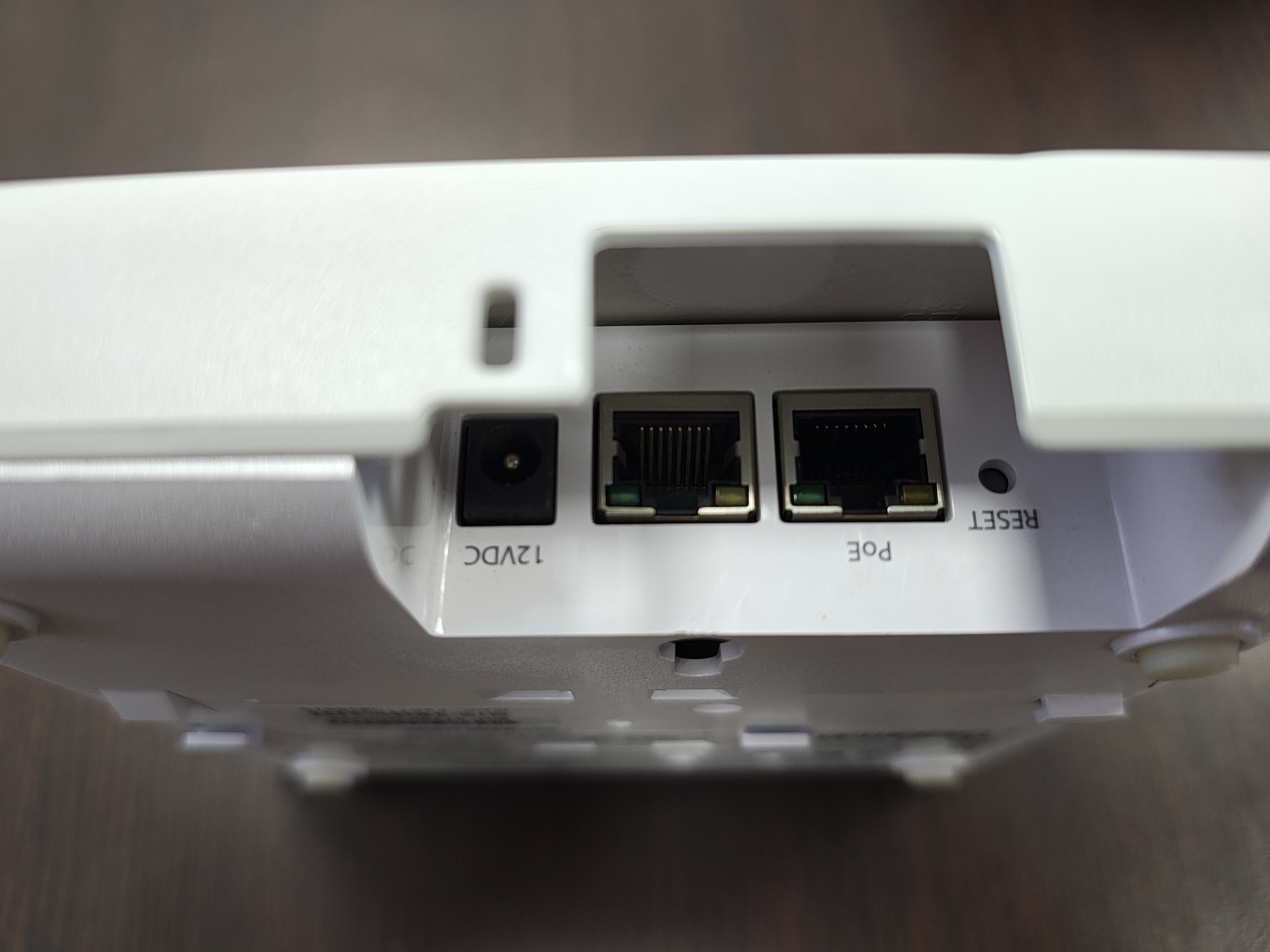

The Access Point has 3 ports.
- POE - Power and Data communication
- RJ45 - Data only
- 12VDC - Power only
It is important to know that you can use POE or RJ45 + 12VDC, the most used is POE, because already has Power and Data in only one cable.
This device is usually connected to POE switch that makes up the internal network (Easylinx).
