Purpose
The Purpose of this document is to present an Local Network switch.
Internal Switch
The internal switch for route is a device responsible to connect slots to server.

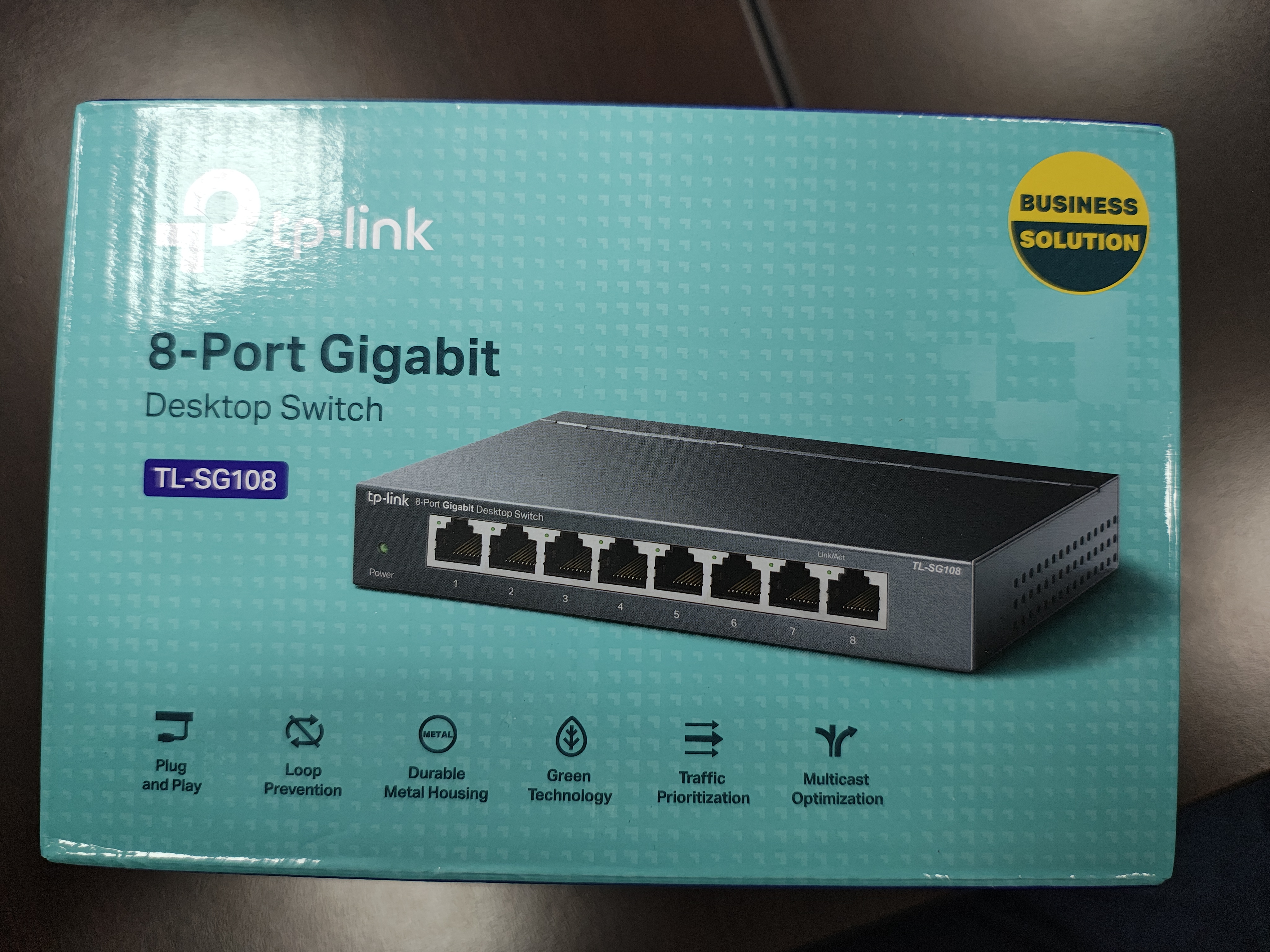

The following pictures are from switch and switch in the box.

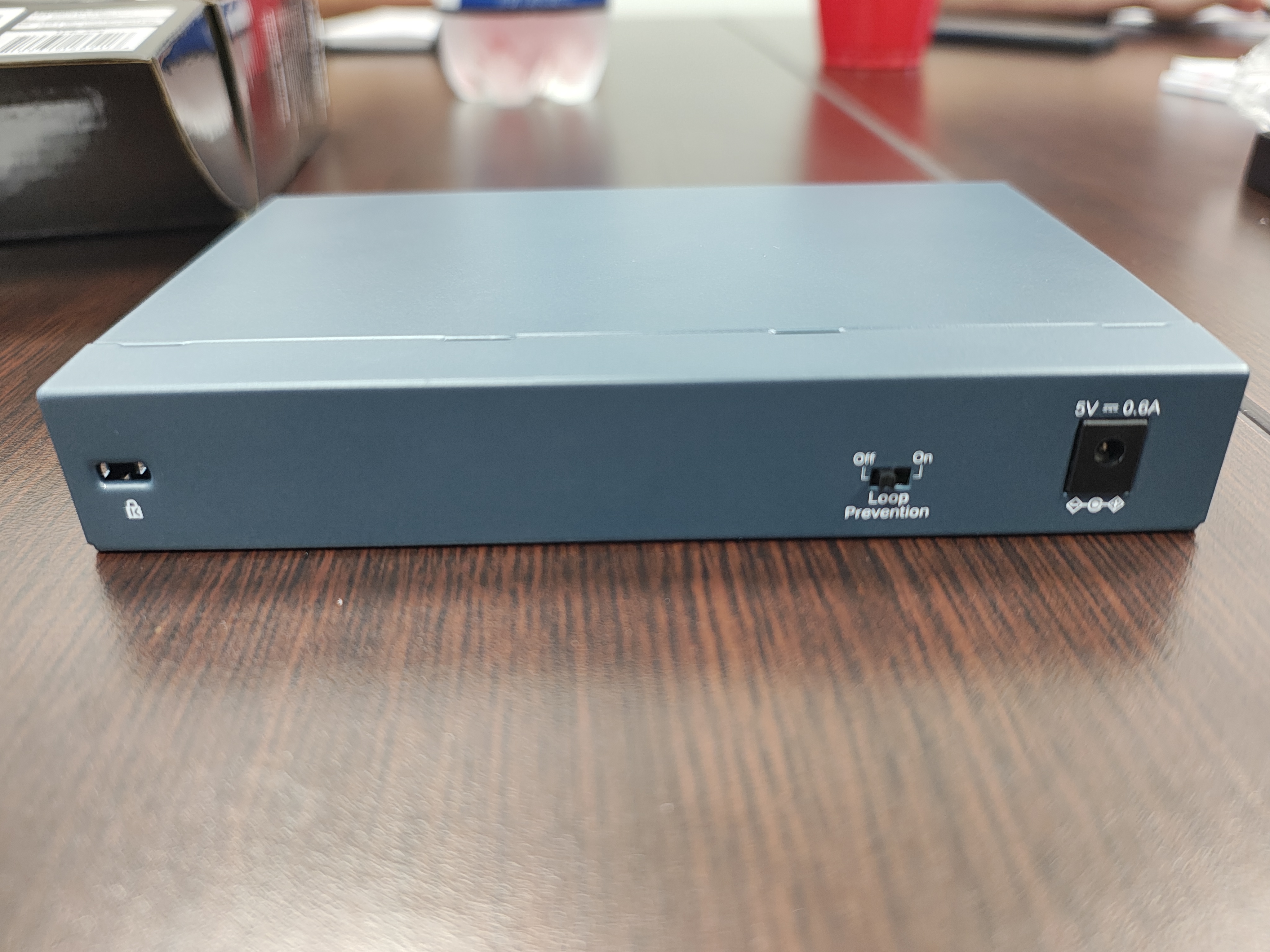

In the front, there is the power cable connection.

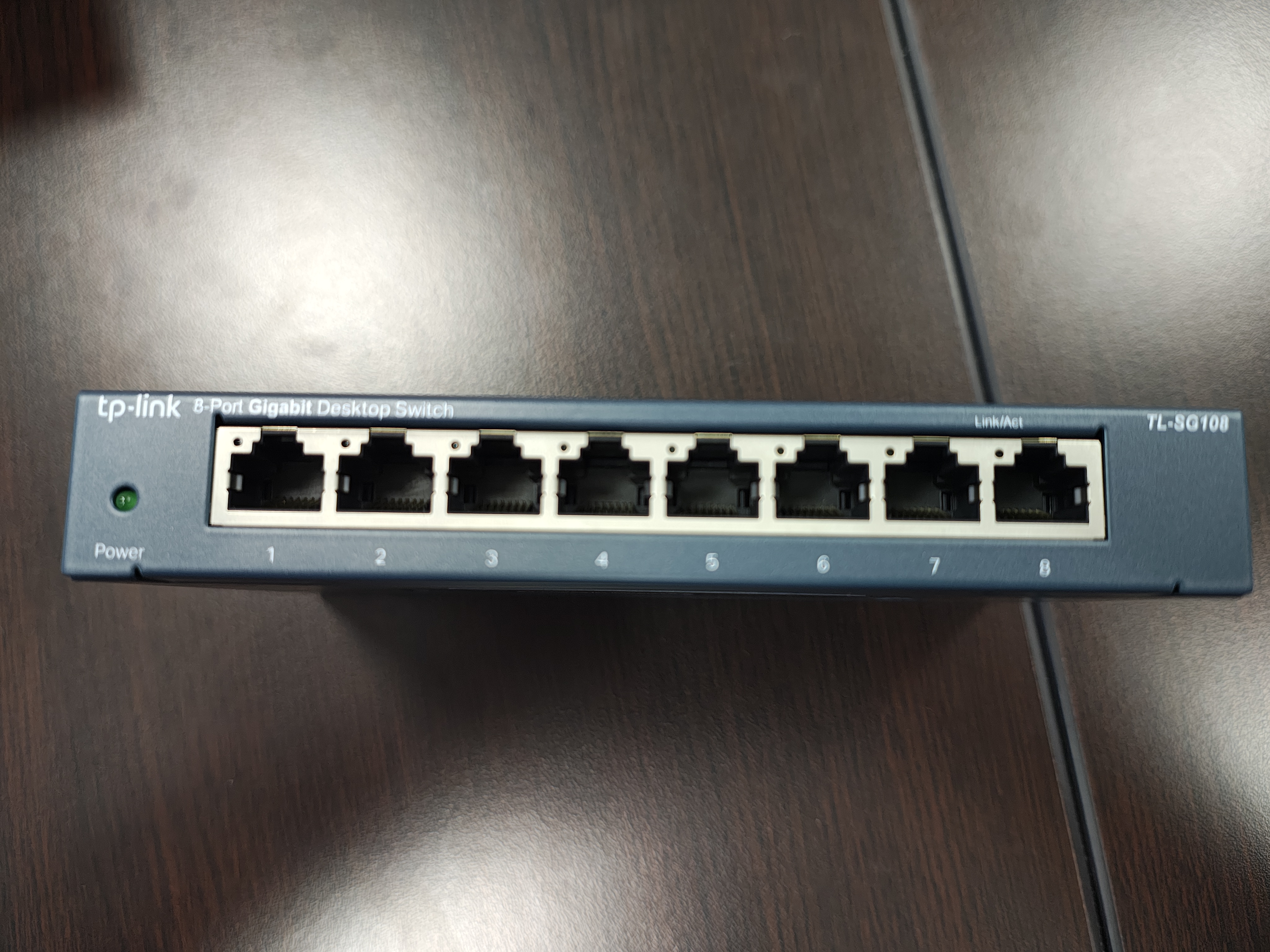

This switch has 8 ports.

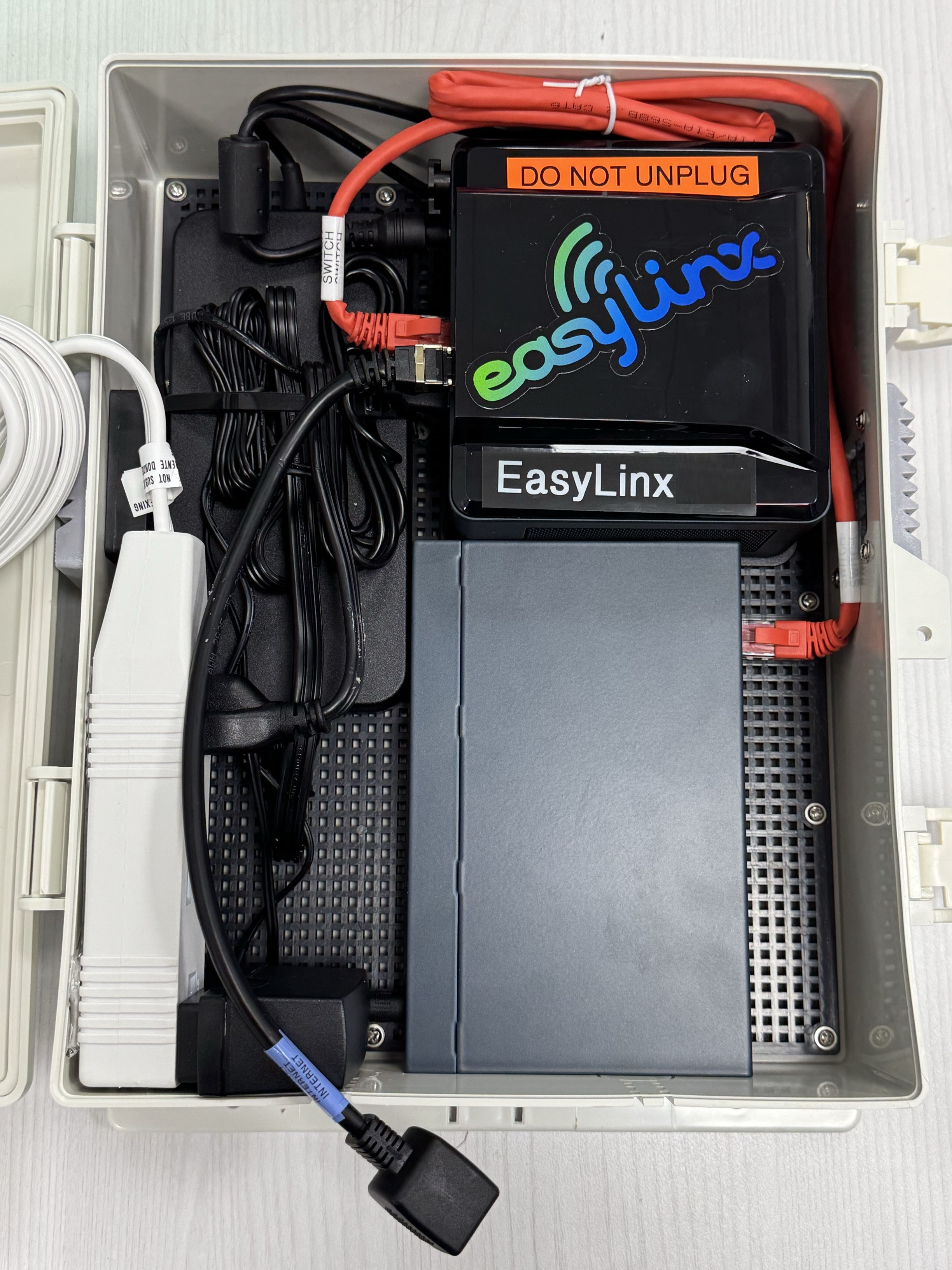

when in a box, this is how the switch is placed.

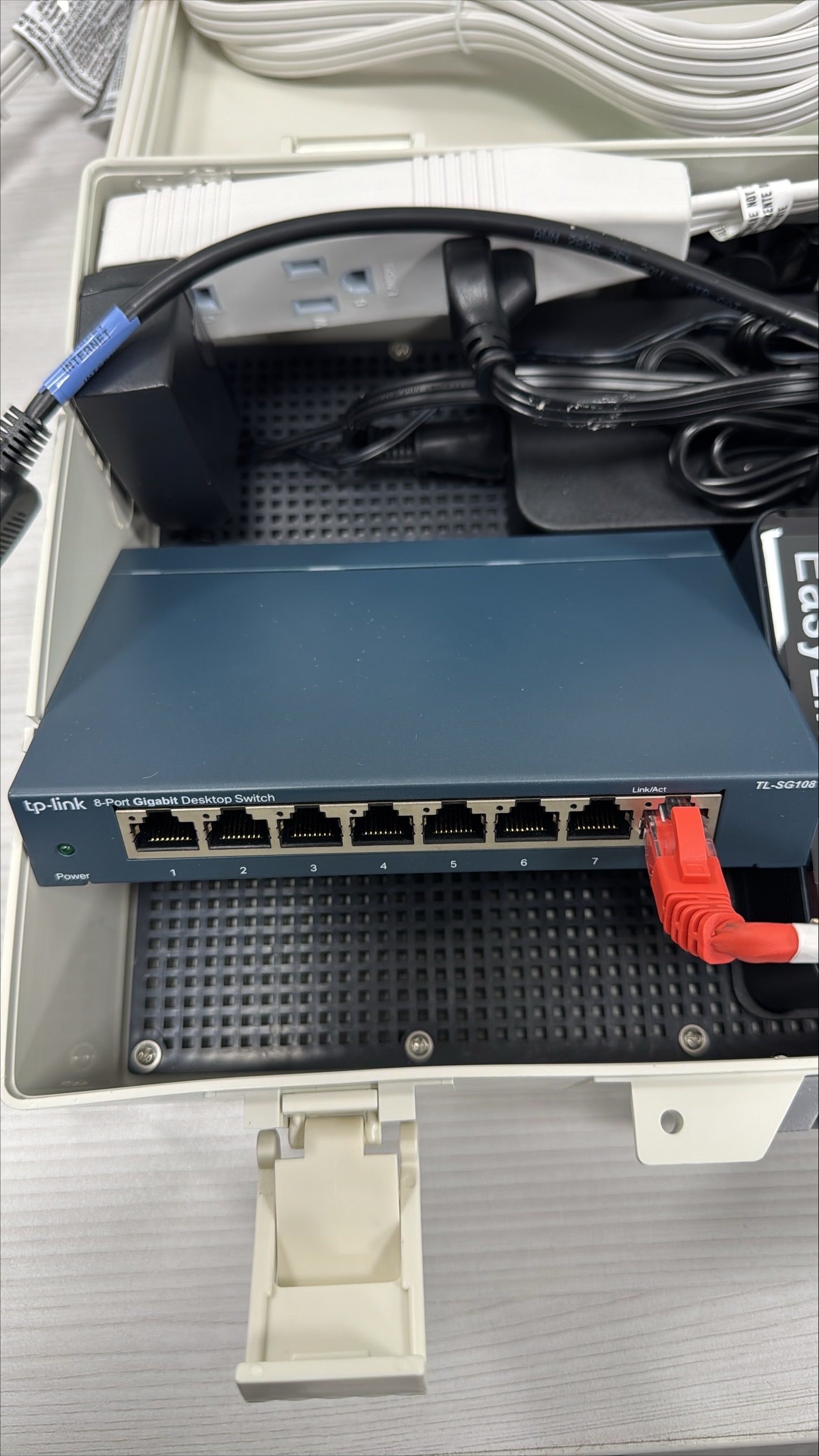

In this example, the switch is connected to server and has 7 ports available to connect machines.
